คำอธิบาย
SYMIK DJI 360/6/5/4/3 Intelligent Charging Case Power Bank Converter By AquaproThailand
Battery Type Auto Detection
Intelligent algorithm is able to detect the Chemical Characteristics of
Osmo 360 / Action 5 Pro (4.45V) and Action 4/3 (4.40V) batteries
and apply the correct charging profiles
Osmo 360 / Action 5 Pro Battery
Action 4 / 3 Battery
Equipped with the Same Type of
SD Card Slots as the Osmo 360/
Osmo Action Camera
Conveniently Stores 2 Micro SD Cards
Versatility Meets Elegance
Comes with a hand strap
Adding a touch of elegance when you’re on the go
Detailed Battery Data Displayed
in High Definition
Comes with 1.47″ Crispy LCD screen which displays all the battery
and charging information
Unparallelled Charging Accuracy
Equipped with 3 High Precision charging chips by Texas Instruments
Achieving ±8mV charging voltage accuracy, 5 times more accurate than competition
Charging voltage accuracy is crutial to battery life, safety
and user experience
If the charging voltage is too high, the battery will be over charged.
A slight overcharge can potentially impact the lifespan of the battery,
while significantly overcharging poses a risk to charging safety.
If the charging voltage is too low, the battery cannot be fully charged.
Repeated undercharging a battery can cause the fuel gauge to lose
calibration, potentially leading to inaccurate charge level readings.
Original Accumulation Mode &
Even Out Mode
Energy transfer between batteries made easy
Accumulation Mode
Accumulation mode enables the combination of two or three partially
charged batteries into a fully charged one, when possible. This eliminates
the need to replace camera batteries mid-use.
Even Out Mode
In Even Out Mode, the algorithm works to equalize the SOC across the
batteries, aiming to keep them within a specific range. It does this by
transferring energy from the batteries with higher SOC to the ones with
lower SOC. This process can extend the lifespan of all batteries for storage.
Bi-directional (Two Way) Charger
Two-way charger design not only charges your Osmo 360 / Action batteries,
but also capable of charging your mobile devices when needed .*
Power Bank Mode*
Max 5V 2.1A 10.5W Power
USB-C
Input / Output
*Power Bank Mode discharges the Osmo 360 / Action batteries for output power;
This case itself doesn’t have internal batteries.
The Fastest Charging Speed
Delicately designed optimization algorithm dynamically distributes charging
power to the charger channels which results in the fastest charging speed.
Dynamic Power Distribution Algorithm Re-evaluates Power Adjustment
180 Times Per Hour which makes sure the fastest charging speed is
achieved in limited power situations.
*A 30W+ PD power adapter and a USB-C to USB-C cable are required for fast charging. The USB-C cable included with the Osmo Camera
can be used. If you are using a USB-A to USB-C cable, the charging case will likely only receive 5V. In this scenario, you will not be able to
charge all batteries simultaneously due to insufficient input power. 29min/51min charging time requires set to 20W/ Channel mode.
The Real Hexagonal Warrior
Competition
Single Channel up to 20W,
Charging Speed
Charges to 80% in 26-29 Minutes*
Single Channel
9W Maximum
Charging Voltage
Accuracy
+-8mV
+-45mV
Versatility
5 Modes
1-2 Modes
Intelligence & Human
LCD Screen+High Precision Data
Machine Interface
Acquisition+Hall Sensor+Buzzer
1-4 LED Lights
+50000 Lines of reliable code
Customizability
& Playability
12+ Option Settings Menu
Void
Safety & Protection
Highly reliable Texas Instruments
Relying solely on
charging chip protection + multi
charging chips
control loop software protection
*Tested with single OEM 1770mAh/1950mAh battery and charge power set to 20W/channel. Default is set to
10W/channel from the factory.
The Ultimate
Customizable Experience
Meticulously designed settings menu offers over
12 customizable parameters,
catering to the sophisticated needs of advanced users. Simultaneously
extremely high playability.

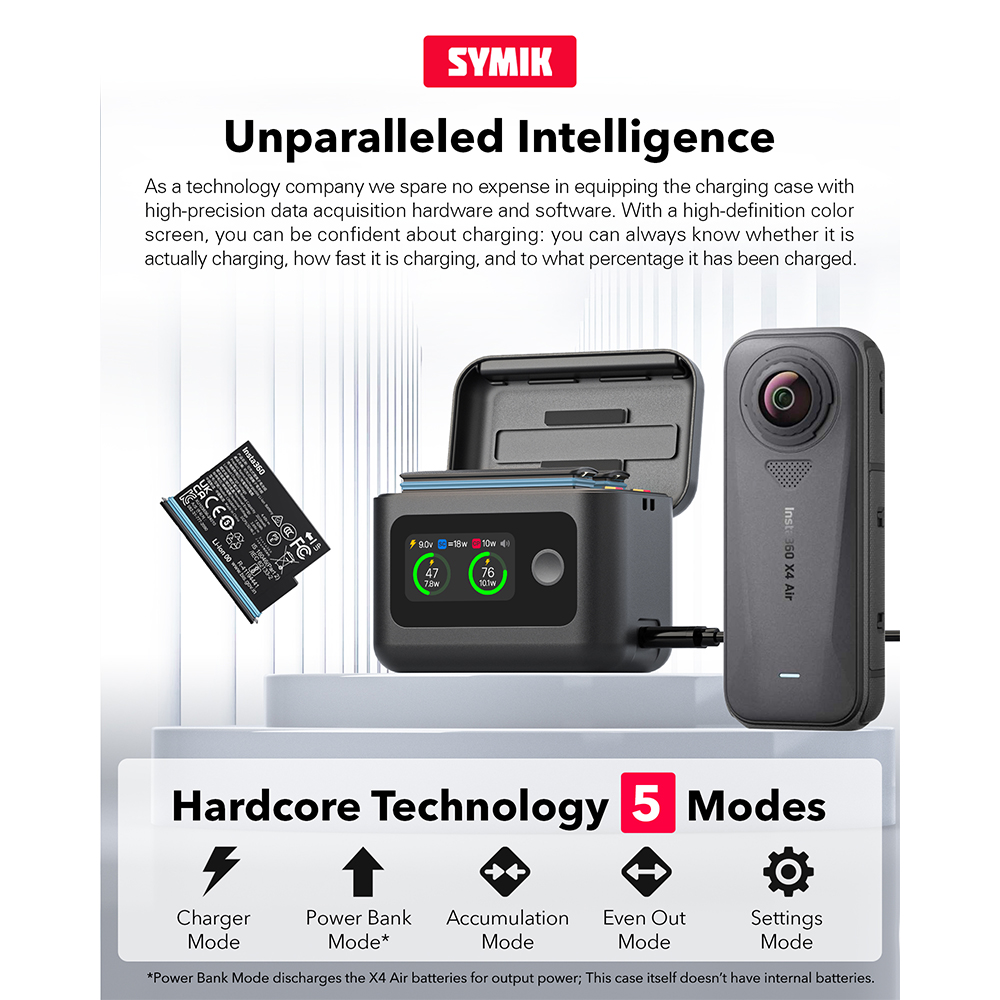

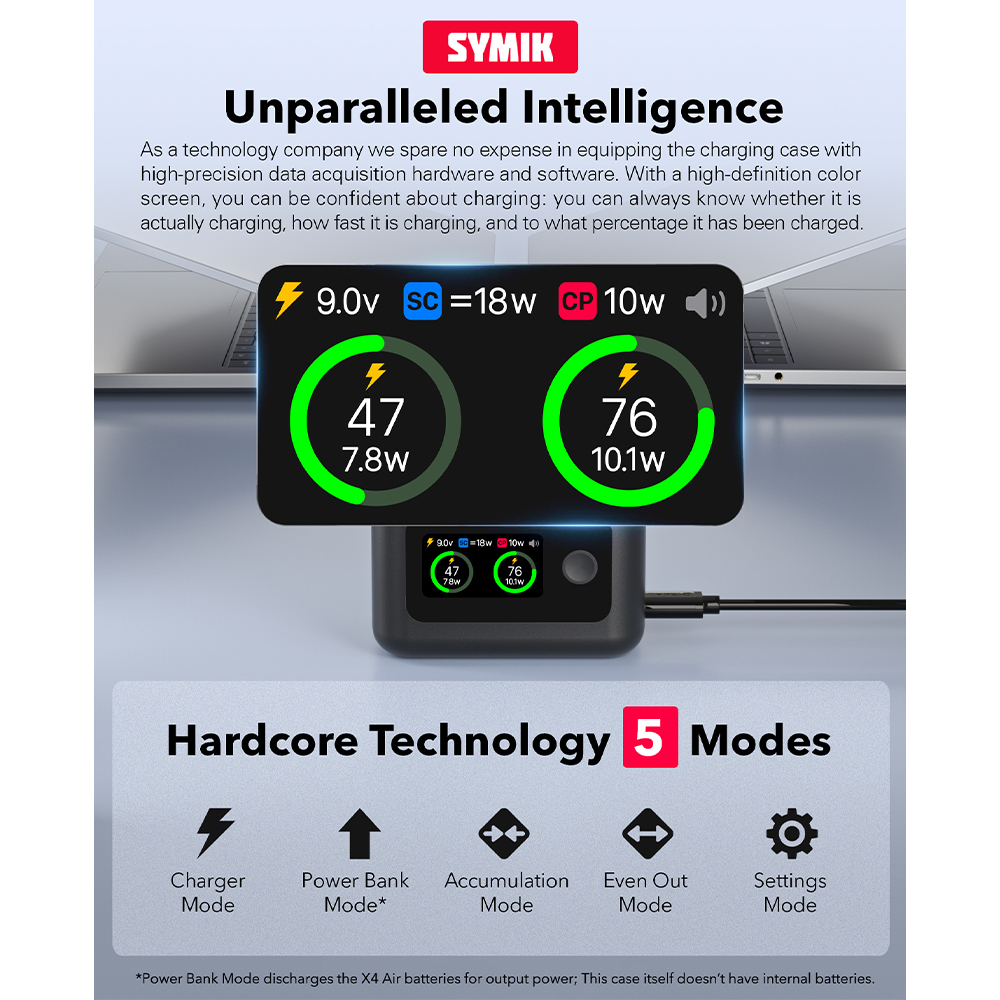

Unparalleled Intelligence
As a technology company we spare no expense in equipping the charging case with
high-precision data acquisition hardware and software. With a high-definition color
screen, you can be confident about charging: you can always know whether it is
actually charging, how fast it is charging, and to what percentage it has been charged.
Specifications
Operating Temperature:
32° to 104° F (0° to 40° C)
Charger Mode USB-C Input:
5V 3A; 9V 3A; (27W Max)
Charge Power Limit (Each Channel):
Up to 20W Adjustable
Power Bank Mode USB-C Output:
5V2.1A (10.5W)
Charging Time at Room Temp:
Tested with Brand New (Not aged) OSMO 360/Action 5 Pro 1950mAh 4.45V Battery
0% to 80% in 43min @ 10W
0% to 100% in 65min @ 10W
0% to 80% in 29min @ 20W (Charging time is for the 1st battery, 2nd and 3rd battery will be slower)
Charging Time at Room Temp:
Tested with Brand New (Not aged) Action 4/3 1770mAh 4.40V Battery
0% to 80% in 38min @ 10W
0% to 100% in 60min @ 10W
0% to 80% in 26min @ 20W (Charging time is for the 1st battery, 2nd and 3rd battery will be slower)
Product Size:
2.99*2.36*1.89 inch(76*60*48 mm)
Product Weight:
4.0 Ounces / 115 grams
Color: High Tech Gray
