คำอธิบาย

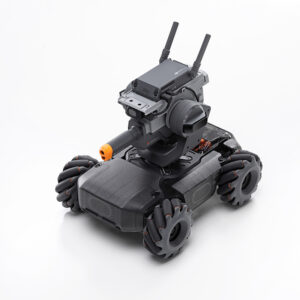

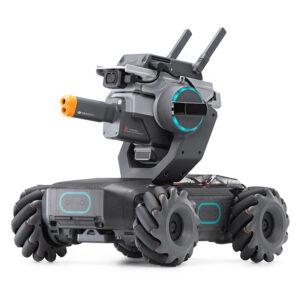

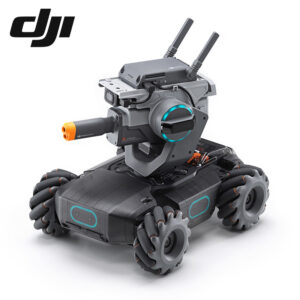

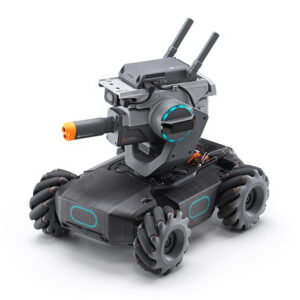

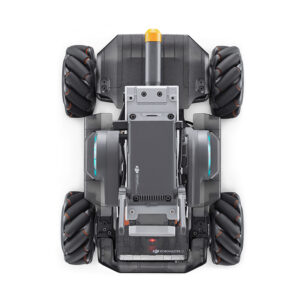

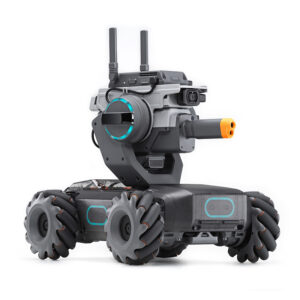

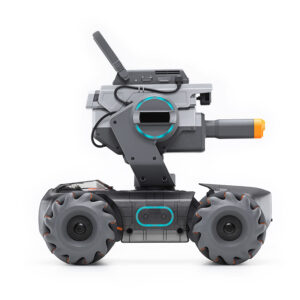

DJI Robomaster S1 โดรน ประกันศูนย์ไทย
นี้คือหุ่นยนต์รถบังคับอัจฉริยะ ตัวแรกของค่ายDJI ที่มีนามว่า” โรโบ มาสเตอร์ เอสวัน”

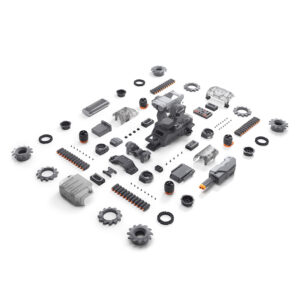

โดยรถยนต์บังคับนี้ ไม่ได้ถูกสร้างมาแค่ให้ความสนุกเพียงเท่านั้น แต่ยังทำให้คุณได้ฝึกฝน ,เรียนรู้การเขียนโค้ดสั่งการ และออกแบบประกอบมันด้วยตัวคุณเองได้
มีคุณสมบัติหลักดังนี้
• สามารถออกแบบการเคลื่อนที่ของรถยนต์บังคับนี้ได้มากถึง 46 รูปแบบ
• มาพร้อมการสั่งงานด้วยระบบ AI ถึง 6 รูปแบบ
• มีโหมด FPV(HD FPV)
• สั่งโค้ด Scratch & Python
• การเคลื่อนที่ของล้อแบบ 4DW
• ระบบเซนเซอร์อัจริยะ
• Versus mode ให้เรื่องหลายแบบ
Specs
Camera
FOV: 120°
Max Still Photo Resolution: 2560×1440
Max Video Resolution:
• FHD: 1080/30fps
• HD: 720/30fps
Max Video Bitrate: 16 Mbps
Photo Format: JPEG
Video Format: MP4
Sensor: CMOS 1/4″; Effective pixels: 5 MP
Operating Temperature Range: -10 to 40 °C (14 to 104 °F)
Narrow Infrared Units
Effective Range [1]: 6 m (in indoor lighting conditions)
Effective Area:
• Varies from 10° to 40°
• Effective area decreases as the distance from the target increases.
Wide Infrared Units
Effective Range [1]: 3 m (in indoor lighting conditions)
Effective Width: 360° (in indoor lighting conditions)
Hit Detector
Detection Requirements: For the Hit Detector to be activated, the following conditions must be met: Gel bead diameter ≥ 6mm, launching speed ≥20m/s, and the angle between the hit direction and hit detector plane is no less than 45°.
Maximum Detection Frequency: 15 Hz
S1
Weight: Approx. 3.3 kg
Dimensions: 320×240×270 mm (length × width × height)
Chassis Speed Range:
• 0-3.5 m/s (forward)
• 0-2.5 m/s (backward)
• 0-2.8 m/s (sideways)
Max Chassis Rotational Speed: 600°/s
M3508I Brushless Motor
Max Rotational Speed: 1000 rpm
Max Torque: 0.25N·m
Max Output Power: 19 W
Operating Temperature Range: -10 to 40 °C (14 to 104 °F)
Driver: FOC
Control Method: Closed-loop speed control
Protection:
• Overvoltage protection
• Overtemperature protection
• Soft-start
• Short-circuit protection
• Chip and sensor anomaly detection
Blaster
Controllable Launching Frequency: 1-8/s
Max Launching Frequency: 10/s
Initial Launching Speed: Approx. 26 m/s
Average Load: Approx. 430
Gimbal
Controllable Range:
• Pitch: -20° to +35°
• Yaw: ±250°
Mechanical Range:
• Pitch: -24° to +41°
• Yaw: ±270°
Max Rotational Speed: 540°/s
Vibration Control Precision (on the flat surface and with the Blaster idle): ±0.02°
Intelligent Controller
Latency [2]:
• Connection via Wi-Fi: 80-100ms
• Connection via Router: 100-120ms
• (unobstructed, free of interference)
Live View Quality: 720p/30fps
Max Live View Bitrate: 6 Mbps
Operating Frequency [3]: 2.4 GHz, 5.1 GHz, 5.8 GHz
Operating Mode: Connection via Wi-Fi, Connection via Router
Max Transmission Distance [4]:
• Connection via Wi-Fi:
FCC, 2.4 GHz 140 m，5.8 GHz 90 m
CE, 2.4 GHz 130 m，5.8 GHz 70 m
SRRC, 2.4 GHz 130 m，5.8 GHz 90 m
MIC, 2.4 GHz 130 m
• Connection via Router:
FCC, 2.4 GHz 190 m，5.8 GHz 300 m
CE, 2.4 GHz 180 m，5.8 GHz 70 m
SRRC, 2.4 GHz 180 m，5.8 GHz 300 m
MIC,2.4 GHz 180 m
Transmission Power (EIRP):
• 2.400-2.4835 GHz
FCC: ≤30 dBm
SRRC: ≤20 dBm
CE: ≤19 dBm
MIC: ≤20 dBm
• 5.150-5.250 GHz
FCC: ≤30 dBm
SRRC: ≤23 dBm
CE: ≤20 dBm
MIC: ≤23 dBm
• 5.725-5.850 GHz
FCC: ≤30dBm
SRRC: ≤30dBm
CE: ≤14 dBm
Transmission Standard: IEEE802.11a/b/g/n
Intelligent Battery
Capacity: 2400 mAh
Nominal Charging Voltage: 10.8 V
Maximum Charging Voltage: 12.6 V
Battery Type: LiPo 3S
Energy: 25.92 Wh
Weight: 169 g
Operating Temperature Range: -10 to 40 °C (14 to 104 °F)
Charging Temperature Range: 5 to 40 °C (41 to 104 °F)
Maximum Charging Power: 29 W
Battery Life in Use: 35 minutes (measured at a constant speed of 2 m/s on a flat surface)
Battery Life on Standby: Approx. 100 minutes
Charger
Input: 100-240 V, 50-60Hz, 1A
Output: Port: 12.6 V=0.8A or 12.6 V=2.2A
Voltage: 12.6 V
Rated Voltage: 28 W
Gel Bead
Diameter: 5.9-6.8 mm [2]
Weight: 0.12-0.17 g [2]
App
App: RoboMaster
iOS: iOS 10.0.2 or later
Android: Android 5.0 or later
Router
Recommended Routers:
• TP-Link TL-WDR8600; TP-Link TL-WDR5640 (China)
• TP-Link Archer C7; NETGEAR X6S (International)
Recommended outdoor power supply solution for routers: Laptop Power Bank (match the input power of the router)
microSD card
Supported SD Cards: Supports microSD cards with a capacity of up to 64GB
Others
Notes:
1. Use of the infrared units will be affected in outdoor or infrared-intensive environments.
2. Measured in an interference-free and unobstructed environment with a distance of approximately one meter between the mobile device, the router, and the S1. The iOS device used was an iPhone X. The results of testing with different Android devices may be different.
3. Outdoor use of the 5.1 GHz and 5.8 GHz frequency bands is prohibited in some areas. Always follow all local laws and regulations in your country or region.
4. Measured in an interference-free and unobstructed environment. For Connection via Wi-Fi, the mobile device used for testing was a sixth-generation iPad (released in 2018). For Connection via Router, several router models were used for testing. FCC: TP-Link Archer C9; SRRC: TP-Link WDR8600; CE: TP-Link Archer C7; MIC: WSR-1160DHP3.
5. The gel beads will swell to a usable size after being soaked in water for four hours.
